Plate Heat Exchanger

The plate heat exchangers consist of a number of corrugated plates. The plate package is mounted between a fixed and movable pressure plate, positioned by an upper guide bar and lower carrying bar, and compressed by several tightening bolts. The fluid is fed into the plate package via connections on the fixed and movable pressure plates. The arrangement of the plate creates two separate channels, enabling the two fluids to flow past and between each other without physical contact, leaving from the equipment again through connections in pressure plates. Plate with different patterns can be mixed in heat exchanger in order to achieve optimum efficiency at a given parameters. By installing muti-pass arrangement plates in plate heat exchanger, it also can handle more than two types of fluid.

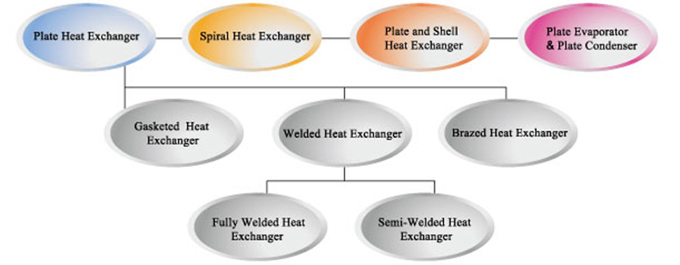

Besides plate heat exchanger, we also develop other forms of heat exchanger. Accessen also can define right one from heat exchanger family according to design pressure and temperature in application.
